Set up Email Info

Main Menu > Setup Data > Email tab

Use this section to send email directly from FrameReady or to use third party client software.

Requirements

  • Compatible with Windows or Mac.

  • Requires an internet connection.

  • Requires an active email account and some setup in FrameReady.

Setup Data - Outgoing Email tab Explained

How to open this screen

  1. On the Main Menu, click the Setup Data icon.

  2. Open the Email tab.

Email Client Radio Buttons

  • Chose your preference for sending email by clicking the appropriate radio button:

  • Select Client to send FrameReady emails, e.g. e-blasts, pick up notifications, etc. using third party client software (Outlook, Mail, etc).

    • If Client option is chosen then click Done.

    • When you then attempt to send an email to a customer, your computer opens its default email software.

    • If there is no email program, then you must install an email program or, if one is already installed, create an association in the Default Program control panel (Windows) after which FrameReady will launch your email program, e.g. Outlook, Mail, ThunderBird, etc.

  • Select SMTP to send plain-text email directly from FrameReady to your email server.

    • You must fill out the Name, Email Address, Reply to Address, Auto-enter CC, Auto-enter BCC, SMTP Server, SMTP Port, Enchryption, Authentication type, Username and  Password.

    • You may need to contact your ISP or Email provider for the information in order to fill in the remaining fields. Some of the popular providers are included in Load Pre-sets.

  • Select SMTP HTML to send HTML email directly from FrameReady to your email server.

    • You must fill out the Name, Email Address, Reply to Address, Auto-enter CC, Auto-enter BCC, SMTP Server, SMTP Port, Enchryption, Authentication type, Username and  Password.

    • You may need to contact your ISP or Email provider for the information in order to fill in the remaining fields. Some of the popular providers are included in Load Pre-sets.

Load Pre-set Drop-down

Name Field

  • As seen in the "from" field, e.g. your shop name.

Email Address Field

  • Use a business email address address here to avoid flooding your personal inbox.

Reply-to Address Field

  • If you want responses (to messages sent from FrameReady) to have an alternate reply-to address, enter it here.

  • Keep in mind that your address will still appear in the From: field.

Auto-enter CC Field

  • If you desire the email sent by FrameReady to be carbon copied to another email address, enter it here.

Auto-enter BCC Field

  • If you desire the email sent by FrameReady to be blind carbon copied to another email address, enter it here.



SMTP Settings

You may need to contact your ISP or Email provider for the proper SMTP settings:

  • SMTP Server

  • SMTP Port

  • Encryption - SSL, TLS, or None

  • Authentication - Plain-Password, Cram-MD5, or None.

  • Username

  • Password

Username Field

  • Typically your username is the same as your email address.

  • If not, you may need to contact your ISP or Email provider.

Password Field

  • For your privacy, your password cannot be viewed as plain text.

  • The password appears as a fixed series of 15 dots; it does not reveal the actual number of characters in your password.

Tip: Many online webmail platforms (Gmail, AOL/Verizon, Office 365, etc.) allow for Application Passwords. We recommend that you use your platform's app password feature to generate a special password that only FrameReady uses to log into your email account and send.

See: Email Help

How to Test Outgoing Email from FrameReady

  1. On the Main Menu, click the Setup Data icon.

  2. Open the Email tab.

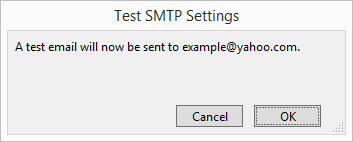

  3. Click the Test SMTP Settings button.

    A dialog box appears informing you that a test email will be sent to the address you provided.



    If you receive the test email, then FrameReady is properly set to send email.

  4. Until you receive the test email, FrameReady cannot properly email.

  5. Click Done to return to the Main Menu, or select another tab.
